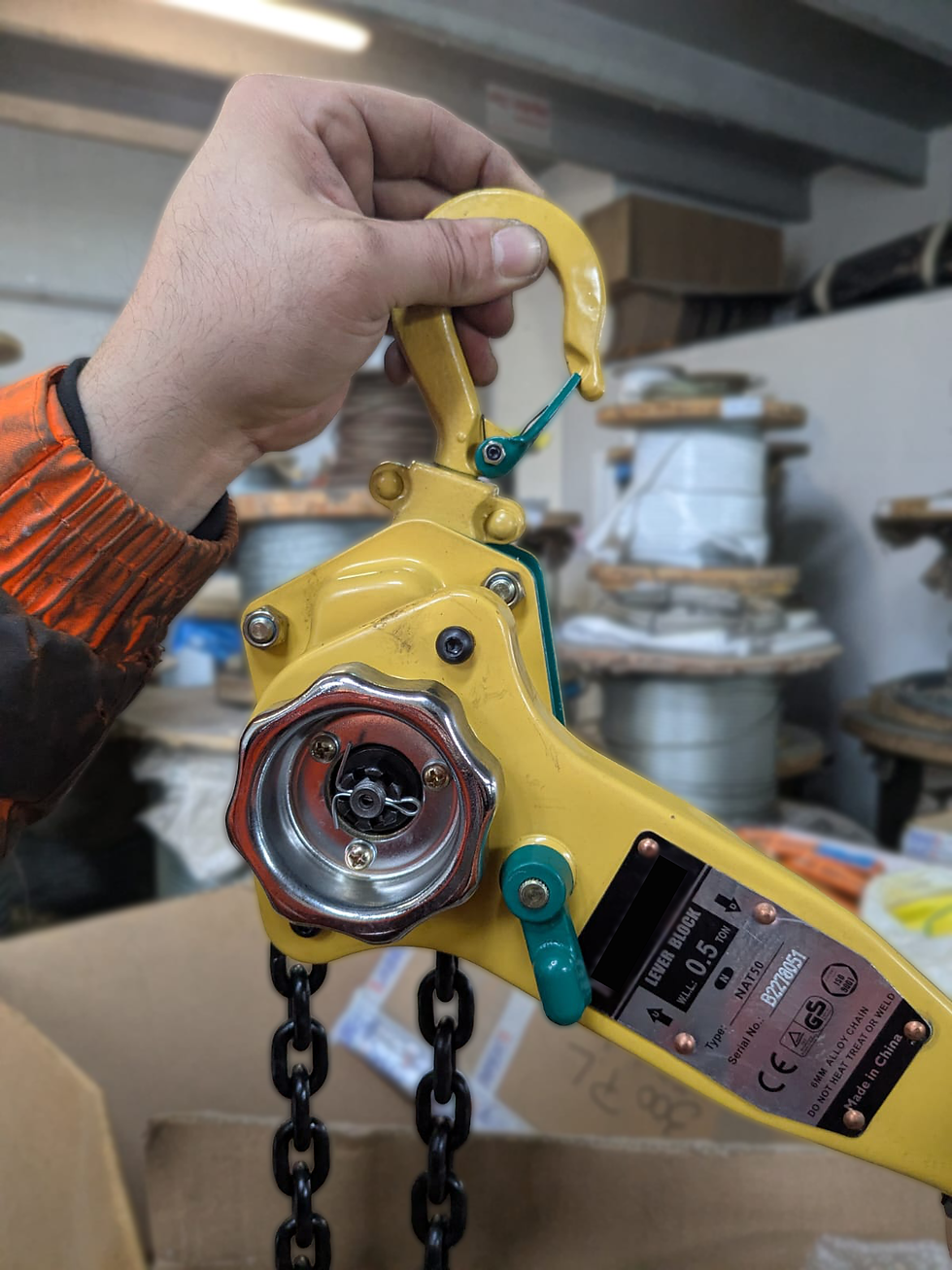

MANUAL AND ELECTRIC LIFTING HOIST RENTAL
MECI srl rents manual and electric chain hoists available with 230 V single-phase or 400 V three-phase power supply.
Winches of this type have overload protection and low voltage control with emergency stop for added safety.
Technical features
The 230 V / 1 pH hoists with capacities from 500 to 1,000 kg are available for manoeuvring and lifting heights of up to 15 m
400 V / 3 pH hoists with capacities from 500 to 3,000 kg are available for maneuvering and lifting heights of up to 30 m
The 400 V / 3 pH 5,000 kg hoists are available for manoeuvring and lifting heights up to 24 m
The 400 V / 3 pH 10,000 kg hoists are available for manoeuvring and lifting heights up to 12 m
HOIST*
ELECTRIC CHAIN
three-phase 400W - 50Hz
capacity 500 kg
chain pulls1
lifting speed M/MIN 7.8
weight 39 kg.
Load limiter
automatic brake in case of power failure
Chain Ø 6.3 x 31.4
3 m of chain supplied
HOIST*
ELECTRIC CHAIN
three-phase 400W - 50Hz
capacity 1000 KG
chain pulls1
lifting speed M/MIN 6.8
weight 56 kg.
Load limiter
automatic brake in case of power failure
Chain Ø 7.3 x 35.0
3 m of chain supplied
HOIST*
ELECTRIC CHAIN
three-phase 400W - 50Hz
capacity 2000 KG
chain pulls1
lifting speed M/MIN 6.8
weight 66 kg.
Load limiter
automatic brake in case of power failure
Chain Ø 10.0 x 49.5
3 m of chain supplied
* Possibility to rent hoists with higher capacities
LIFTING BEAMS RENTAL
Lifting beams are designed for every need and cover a wide range of applications.
In particular, we produce: fixed hook scales, adjustable hook scales, and modular scales.
UPON REQUEST, WE CAN MAKE SIZE BALANCERS TO THE CUSTOMER'S SPECIFIC DESIGN.
MECI srl rents lifting beams with capacities from 3 to 400 tons.
Possibility of redemption at the end of the rental with deferred payments
