GRADE 100 LIFTING HOOKS
GRADE 100 EYE SHORTENING HOOK
GRADE 100 EYE SHORTENING HOOK
The Grade 100 Eye Shortening Hook is a component used in lifting and lashing.
Product Features and Uses: The shortening hook is used to shorten lifting chains and chain links in slings, pendants, and chain slings. It is also used to construct ratchet chain tensioner anchoring systems to facilitate the positioning of Grade 100 chains. It is assembled with connecting links of the same size and capacity as the hook.
Technical data: The hook is certified and CE marked. Ideal for tie rods and chain pendants.
Weight: Varies depending on size.
Available load capacity: from 1400 kg up to 40000 kg
These hooks are essential to ensure safety and stability in lifting and anchoring systems.
GRADE 100 FORK SHORTER HOOK
GRADE 100 FORK SHORTER HOOK
Grade 100 Fork Shortening Hook is a component used in lifting and moving heavy loads.
Material: It is made of grade 100 alloy steel, which is known for its strength and durability.
Function: The fork shortening hook allows you to connect chains quickly and safely, without the use of additional joints.
Markings: Fork shortening hooks feature markings such as the CE stamp, working load rating (WLL) and chain diameter.
Correct use:
Make sure that the suspension or grip of the shortening hooks is done in a way that allows for mobility around the support point.
Periodically check the wear of the hooks and moving parts.
Check that the hooks are correctly positioned before lifting the load.
These hooks are ideal for applications where superior strength and increased security are required.
GRADE 100 EYE HOOK WITH SHEET METAL SAFETY
GRADE 100 EYE HOOK WITH SHEET METAL SAFETY
Grade 100 sheet metal safety eye hook is a component used in lifting and moving heavy loads.
Material: It is made of grade 100 alloy steel, known for its strength and durability.
Safety Device: This hook is equipped with a snap-lock device Self-locking, which opens outward. This additional mechanism ensures greater safety during use.
Finish: The hook is painted to protect it from corrosion and wear.
Correct use:
Make sure that the suspension or grip of the hook is done in a way that allows for mobility around the support point.
Periodically check the wear condition of the hook and safety device.
Use the eye hook for both static loads (such as anchors and tensile structures) and dynamic loads (such as lifting).
This hook is ideal for applications where superior strength and increased security are required.
GRADE 100 FORK HOOK WITH SHEET METAL SAFETY
GRADE 100 FORK HOOK WITH SHEET METAL SAFETY
Grade 100 sheet metal safety fork hook is a component used in lifting and moving heavy loads.
Material: It is made of grade 100 alloy steel, known for its strength and durability.
Safety device: This hook features a self-locking snap-lock device that opens outward. This additional mechanism ensures greater safety during use.
Finish: The hook is painted to protect it from corrosion and wear.
Correct use:
Make sure that the suspension or grip of the hook is done in a way that allows for mobility around the support point.
Periodically check the wear condition of the hook and safety device.
Use the fork hook for both static loads (such as anchors and tensile structures) and dynamic loads (such as lifting).
This hook is ideal for applications where superior strength and increased security are required.
GRADE 100 SWIVEL HOOK WITH SELF-LOCKING SAFETY
GRADE 100 SWIVEL HOOK WITH SELF-LOCKING SAFETY
Self-locking safety swivel hooks are designed to provide increased safety during lifting operations.
Safety Device: These hooks are equipped with an automatic locking mechanism that prevents the load from accidentally releasing.
Application: They are widely used in industrial lifting applications where safety is of primary importance.
Special features: These hooks allow for easy attachment and removal of loads, but at the same time guarantee an additional level of safety thanks to the self-locking mechanism.
Correct Use: Ensure that the hook is suspended or held in a way that allows for mobility around the support point.
Periodically check the wear condition of the hook and safety device.
Use the hook for both static loads (such as anchors and tensile structures) and dynamic loads (such as lifting).
This hook is ideal for applications where superior strength and increased security are required.
GRADE 100 SELF-LOCKING EYE HOOK
GRADE 100 SELF-LOCKING EYE HOOK
The self-locking eye hook is a widely used lifting component. Its main feature is automatic closing: the hook does not open during loading, ensuring greater convenience and safety throughout the lifting operation. This type of hook can be connected to chains or lifting ropes.
Technical specifications of self-locking eye hooks:
Grade 100: Made of alloy steel, these hooks can be assembled with connecting links and are CE marked, tested, and certified. Ideal for chain slings and chain slings. Load capacity ranges from 1400 kg to 19,000 kg.
Correct Use: Make sure that the suspension or grip of the hook is done in a way that allows for mobility around the support point.
Periodically check the wear condition of the hook and safety device.
Use the hook for both static loads (such as anchors and tensile structures) and dynamic loads (such as lifting).
Self-locking eye hooks are reliable lifting tools and contribute to the safety of lifting operations.
GRADE 100 FORK HOOK WITH SELF-LOCKING SAFETY
GRADE 100 FORK HOOK WITH SELF-LOCKING SAFETY
The self-locking fork hook, or clevis, is a widely used lifting component. Its main feature is automatic locking: the hook does not open during loading, ensuring greater convenience and safety throughout the lifting operation. This type of hook can be connected to chains or lifting ropes.
Technical specifications of self-locking fork hooks or clevis:
Grade 100: Made of alloy steel, these hooks can be assembled with connecting links and are CE marked, tested, and certified. Ideal for chain slings and chain slings. Load capacity ranges from 1400 kg to 19,000 kg.
Correct Use: Ensure that the hook is suspended or held in a way that allows for mobility around the support point.
Periodically check the condition of the hook and safety device for wear. Use the fork hook for both static loads (such as anchors and tensile structures) and dynamic loads (such as lifting).
Self-locking fork hooks or clevises are reliable lifting tools and contribute to the safety of lifting operations.
GRADE 100 FOUNDRY EYE HOOK
GRADE 100 FOUNDRY EYE HOOK
A foundry eye hook is a tool used in foundries to lift and move loads. These hooks are typically designed to withstand the harsh conditions and high temperatures typical of foundry environments.
Technical specifications of foundry eye hooks:
Material: Grade 100 alloy steel.
Chain diameter: varies from 6mm to 20mm.
Capacity: from 1,400 kg to 16,000 kg.
GANCIO A FORCELLA GRADO 100 PER FONDERIA

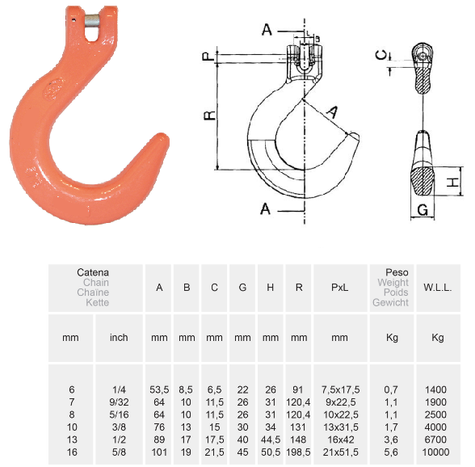

GRADE 100 FORK HOOK FOR FOUNDRY
A foundry fork hook is a tool used in foundries to lift and move loads. These hooks are typically designed to withstand the harsh conditions and high temperatures typical of foundry environments.
Technical specifications of foundry fork hooks:
Used in lifting chains certified to EN818-4.
Components fully compliant with EN1677 standard
Material: Grade 100 alloy steel.
Chain diameter: varies from 6mm to 20mm.
Capacity: from 1,400 kg to 16,000 kg.
